HomeSarix SX200 HPM

Description

Year : 2005
Travel x-axis 350mm
Travel y-axis 200mm
Travel z-axis 200mm
Measurement resolution 2µm
Machine weight : 1000kg
Dimension l : 2000mm
Dimension w : 2000mm
Dimension h : 2800mm

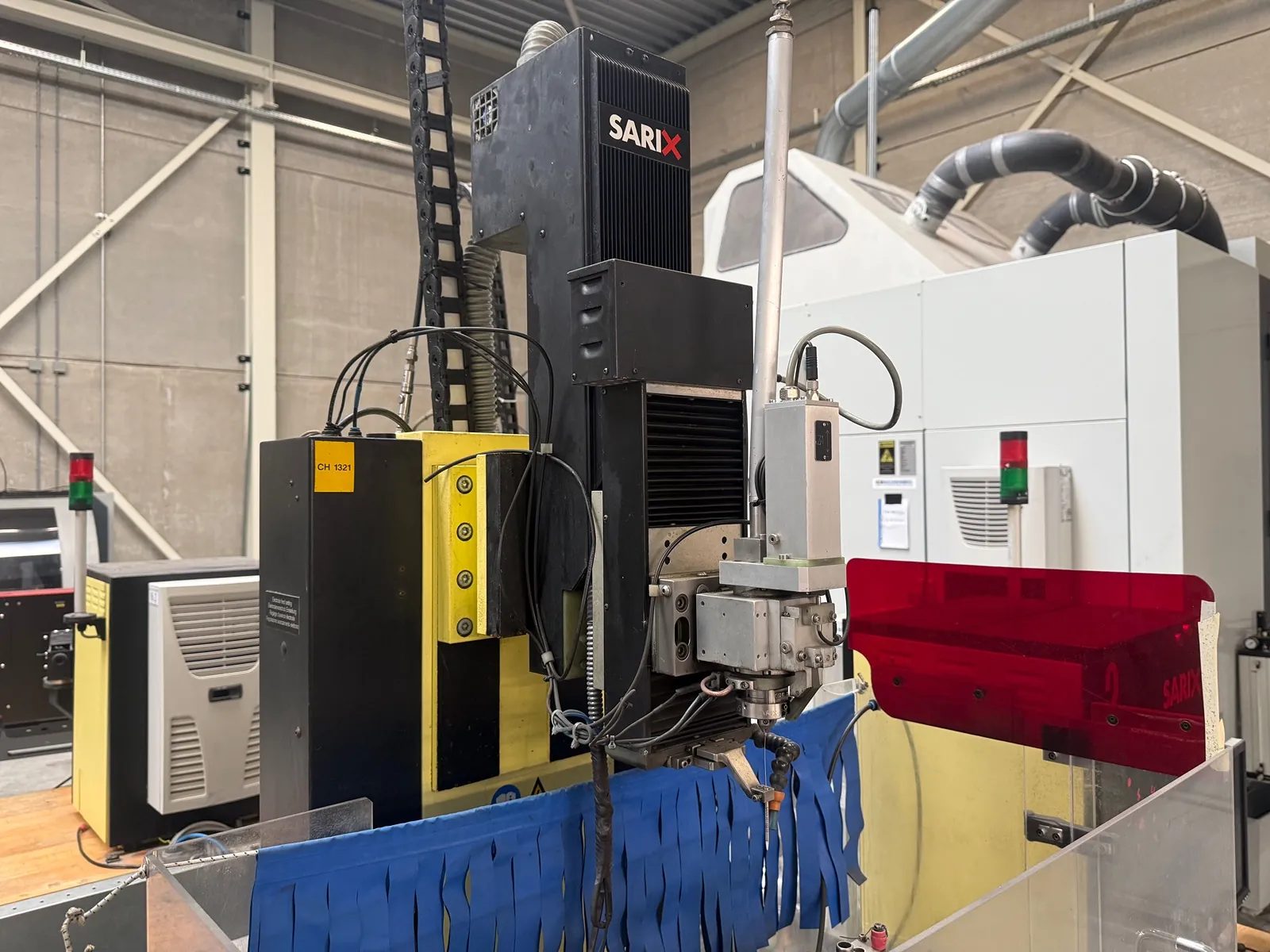

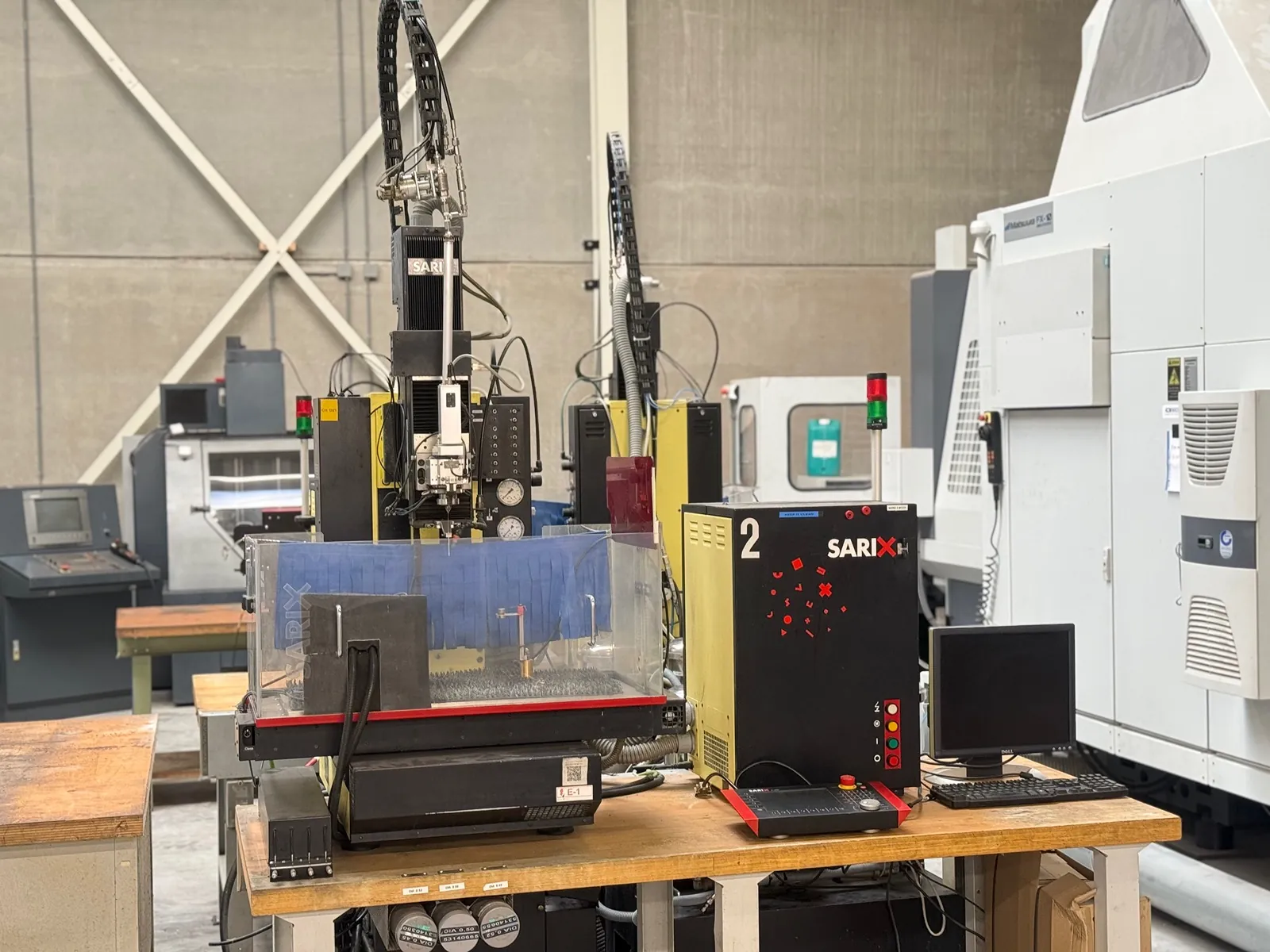

The Sarix SX200 HPM is a high-precision micro EDM machining center designed for advanced micro-manufacturing applications, combining EDM drilling, micro-milling, and fine erosion capabilities in a single platform. Built in Switzerland, this machine is engineered for ultra-precise machining of complex components requiring exceptional accuracy and surface finish.

With its multi-process capability, the SX200 HPM supports 3D micro EDM milling, micro drilling, start-hole drilling, and micro sinking operations, making it ideal for industries such as aerospace, medical devices, toolmaking, and micro-mechanics.

The machine features a working envelope of X: 350 mm, Y: 200 mm, Z: 200 mm, offering flexibility for small to medium-sized precision components. Its positioning accuracy of ±2.0 µm and resolution of 0.1 µm ensures extremely fine machining tolerances.

Equipped with advanced Micro Pulse Shape generators (SX-MFPS / SX-UFPS), the system enables ultra-fine erosion control, delivering superior surface finishes and high repeatability. The integrated automatic electrode feeding and wear compensation spindle enhances process stability and productivity, especially during long machining cycles.

Additional automation features include an 8-position electrode changer, precision collet systems, and optional in-process measurement systems such as a laser micrometer and vision system, allowing continuous high-precision production with minimal operator intervention.

Key Features:
maximum lifting capacity is 8000 kg
Multi-functional micro EDM machining center (drilling, milling, sinking)
Travel: X 350 mm / Y 200 mm / Z 200 mm
Positioning accuracy: ±2.0 µm
Resolution: 0.1 µm

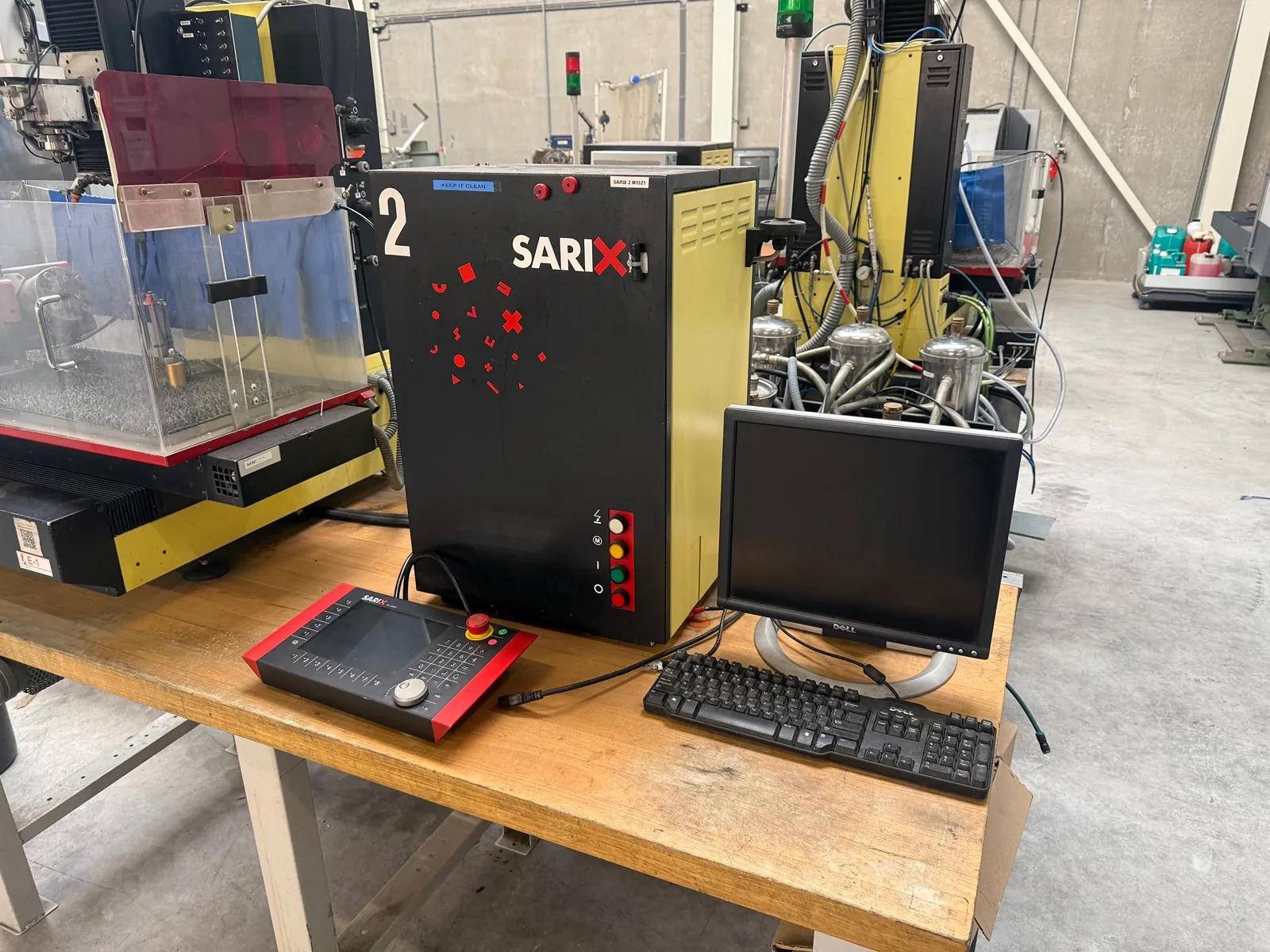

CNC-controlled system
Advanced micro pulse generators (SX-MFPS / SX-UFPS)
Electrode diameter range: approx. 0.035 – 3.0 mm
Automatic electrode feed with wear compensation
8-position electrode changer (SX-Revolver)
High-speed micro drilling capability
Integrated CAM software for complex 3D structures
Optional laser measuring and vision systems
Applications:
Micro-mechanics and precision engineering
Medical device manufacturing
Aerospace components
Mold & die production
High-precision hole drilling and micro-structuring
Summary:

The Sarix SX200 HPM is a premium, ultra-precision EDM solution designed for manufacturers requiring micron-level accuracy, automation, and multi-process capability in one compact system. It is particularly suited for high-value, high-complexity components where conventional machining reaches its limits.

Sarix SX200 HPM

€6.400
