HomeProfi Press 200 Ton

Description

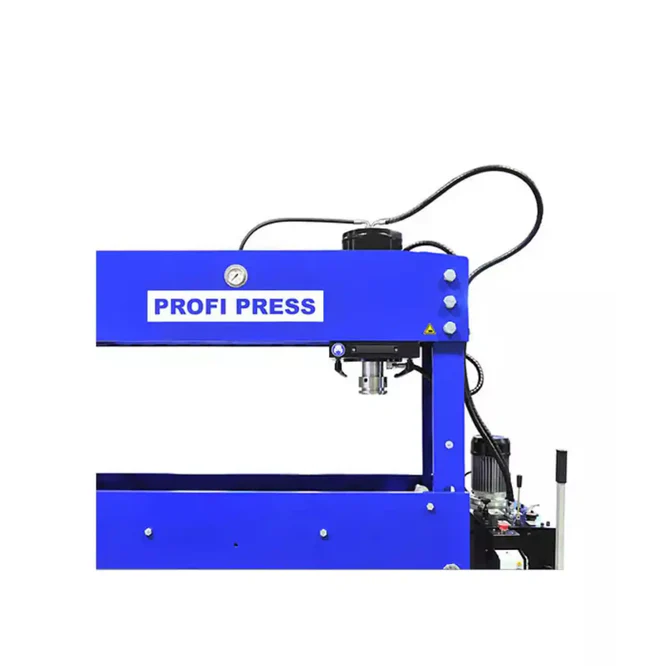

he Profi Press 200 Ton M/H-M/C-2 is a heavy-duty, motorised hydraulic workshop press designed
for demanding industrial applications such as bearing installation and removal,
shaft straightening, metal forming, assembly of press-fit components,
and maintenance work. Manufactured in Europe by RHTC,
it features a movable hydraulic cylinder, an adjustable worktable,
and dual operating modes for both high productivity and precision work.

Key Technical Specifications:

Pressing Force 200 tonnes (1962 kN)
Maximum Hydraulic Pressure 243 bar
Cylinder Stroke 400 mm
Cylinder Type Dual-acting
Cylinder Position Movable (left/right)
Working Width Between Columns 1300 mm
Maximum Bed-to-Ram Distance 975 mm
Table Adjustment Range 410 mm
Table Adjustment Steps 150 mm
Approach Speed 5.73 mm/s
Working Speed 1.84 mm/s
Return Speed 7.08 mm/s
Hydraulic Pump Two-speed
Oil Capacity 64 litres
Oil Flow Rate 7.1 / 27.6 L/min
Motor Power 3.0 kW
Power Supply 400 V, 3-phase, 50/60 Hz
Protection Rating IP54
Overall Dimensions (L × W × H) 865 × 1610 × 2270 mm
Machine Weight 1690 kg
Manufacturer RHTC (Profi Press), Netherlands
Certification CE Certified

Profi Press 200 Ton

€3.400

Contact Us for the Product
