HomeNakamura Tome SC200L

Description

Year of build: 2007
Serial number: L200206
Turning Ø 410mm
Turning length Ø 530mm
Spindle boring Ø 66mm
Speed till n= 4500rpm
Hours on display: 31764
Number of tool changer stations: 12
Engine power (kW) 7.5kW
Electric connection 400V
Machine weight 6000kg
Dimension l: 3222.3mm
Dimension w: 1883.8mm
Dimension h: 1964.6mm

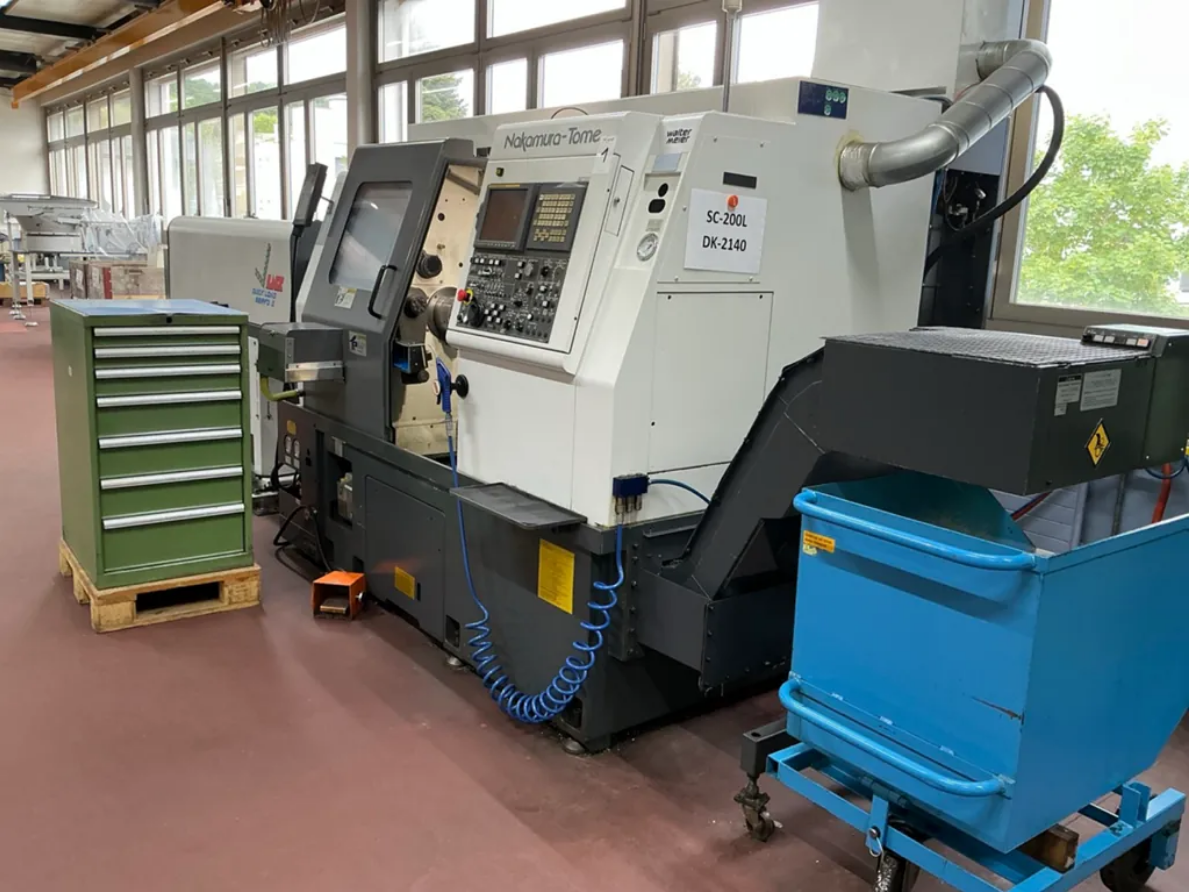

NAKAMURA-TOME Super Mill SC-200LMY precision CNC lathe, equipped with C and Y axes as well as driven tools,
allowing combined turning and milling operations. Machine suitable for the production of complex parts in series.

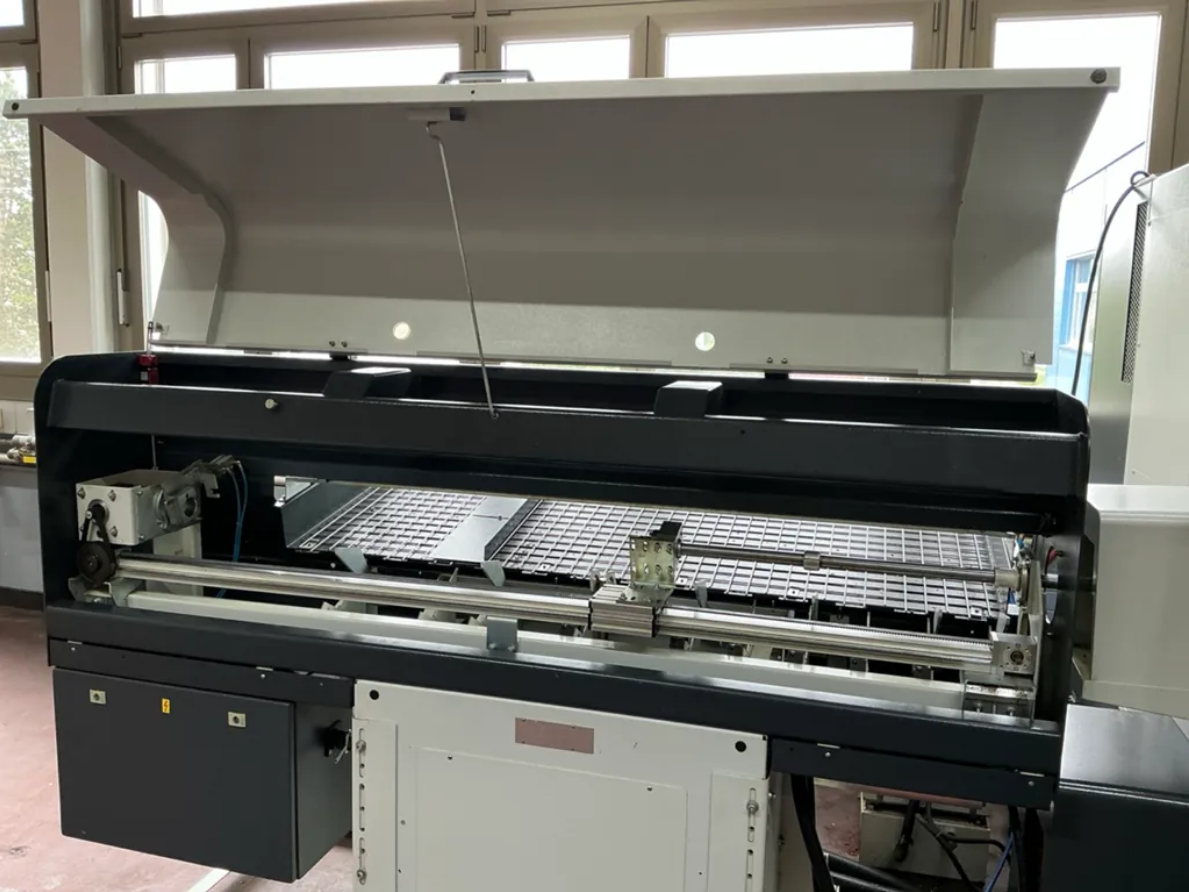

Equipped with an LNS Quick Load Servo 2 automatic bar feeder for continuous feed.
C-axis (0.001° resolution) Y-axis (± 41 mm) Driven Tools (12 positions)

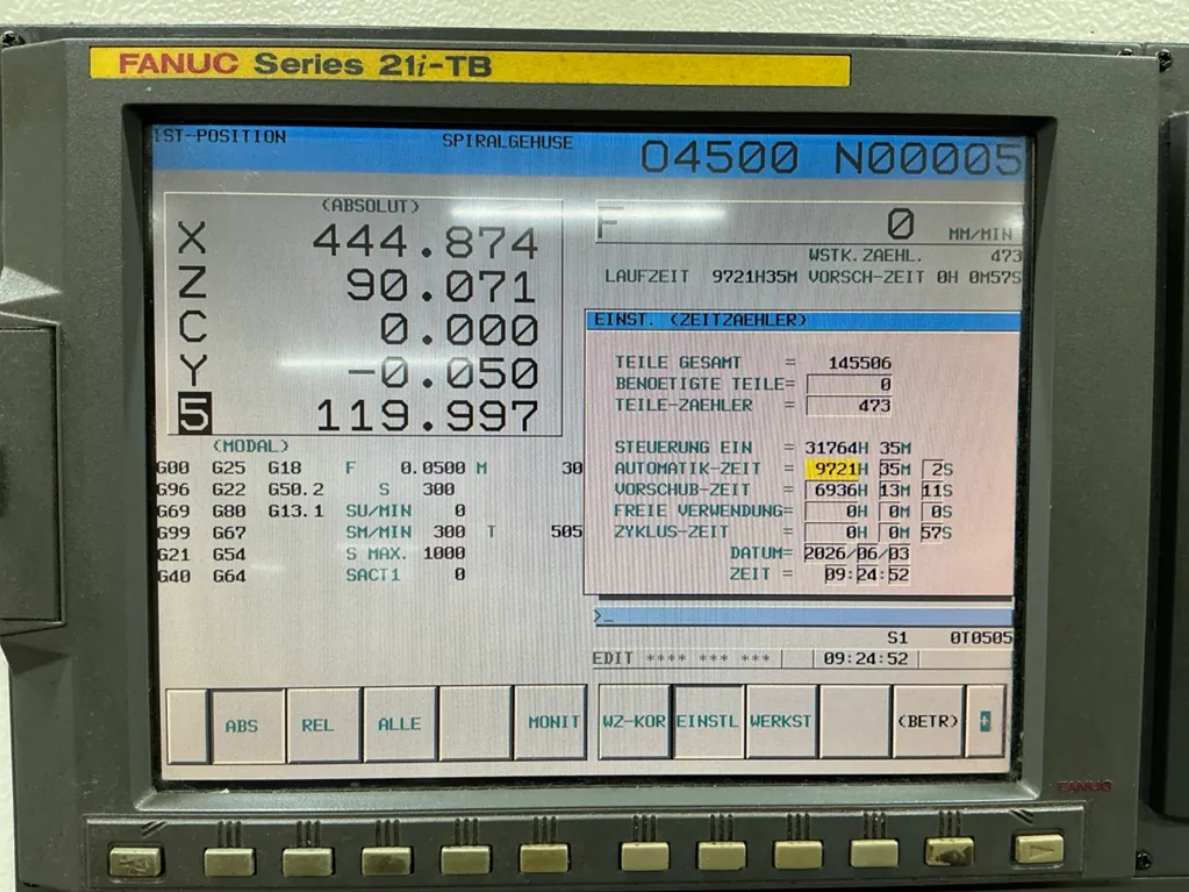

Tool speed: up to 6,000 rpm Tool power: 7.5 / 3.7 kW CNC : FANUC 21i-TB Machine tested under tension.

Nakamura Tome SC200L

€18.500

Contact Us for the Product
