HomeMEP Shark 320SX

Description

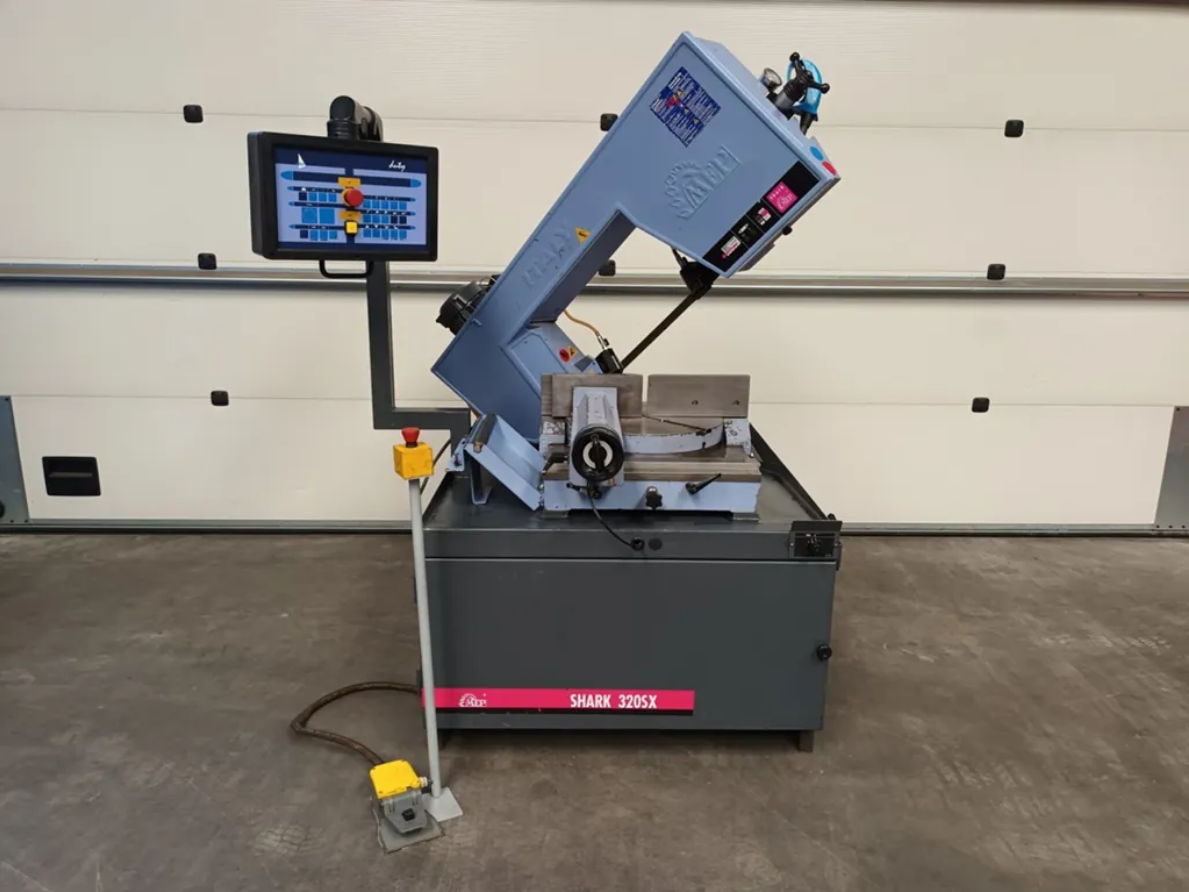

The MEP Shark 320SX is a semi-automatic horizontal band saw widely
used for cutting ferrous and non-ferrous materials.
Machine type Semi-automatic horizontal metal band saw
Maximum cutting capacity (90° round) 260 mm
Maximum cutting capacity (90° square) 250 × 250 mm
Maximum cutting capacity (90° rectangular) 320 × 200 mm
Cutting capacity (45° left round) 230 mm
Cutting capacity (45° right round) 180 mm
Cutting capacity (60° left round) 150 mm
Saw blade dimensions 3150 × 27 × 0.9 mm
Blade speed 36 / 72 m/min (2 speeds)
Motor power 1.8 kW
Electrical supply 400 V, 50 Hz
Coolant system Integrated blade coolant
Machine weight approx. 600 kg
Overall dimensions approx. 2000 × 970 × 2000 mm

The Shark 320SX operates as a semi-automatic horizontal band saw.
After the workpiece is clamped hydraulically, the saw head automatically
lowers through the material at a controlled feed rate. The continuous band
blade produces accurate, burr-minimized cuts while the integrated coolant
system extends blade life and improves cutting quality. Hydraulic return of
the saw head simplifies repetitive production cutting.

MEP Shark 320SX

€2.300

Contact Us for the Product
