HomeEngel Victory 33080

Description

Brand: ENGEL
Type: Victory 330/80 Tech
Machine type: Injection moulding machine with handling system
Year of manufacture: 2007
Serial number: 162762
Injection volume: 154 cm³
Injection pressure: 1,600 bar
Clamping force: 800 kN (80 t)
Mould opening stroke: 456 mm
Ejector stroke: 100 mm
Ejector force: 39.8 kN
Mould size (L × W × H): 650 × 120 × 600 mm

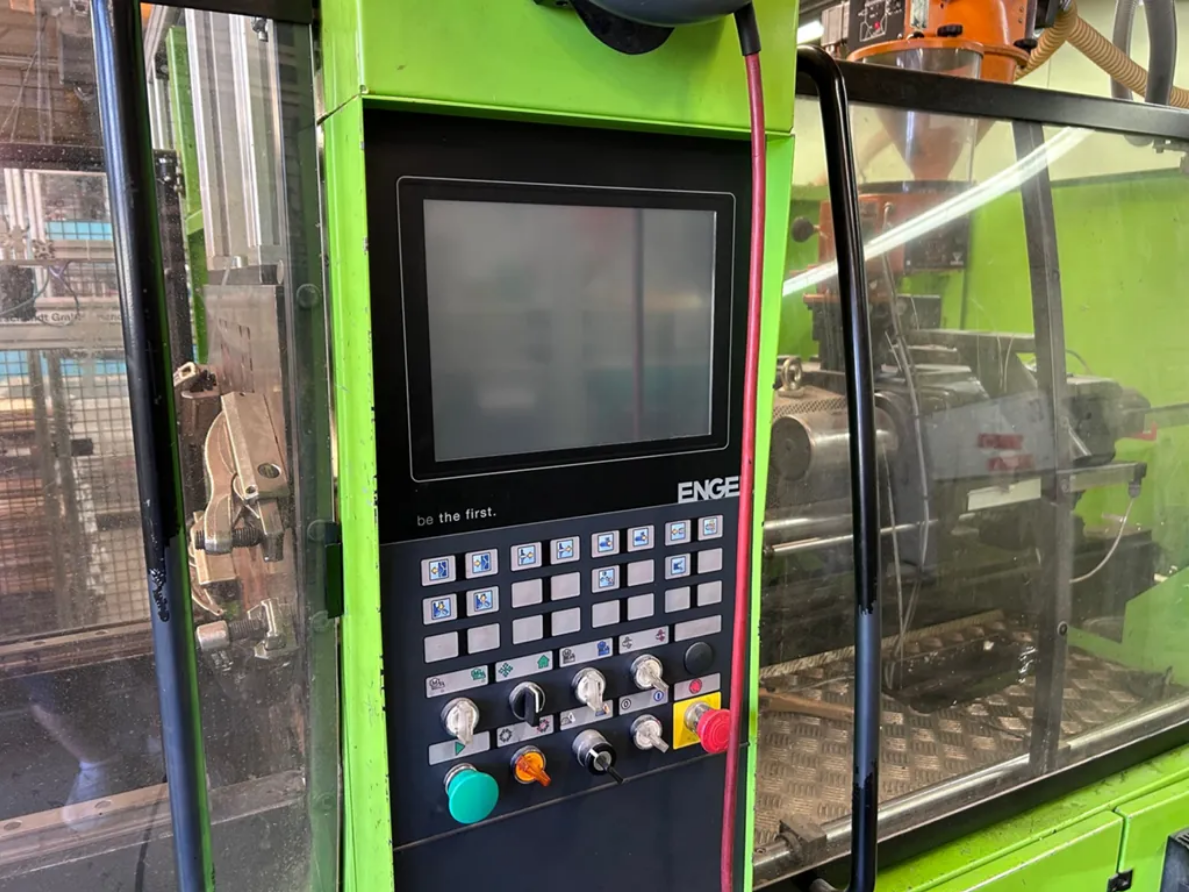

Digital control: Yes
Machine weight: approx. 5,300 kg
Overall dimensions (L × W × H): approx. 4,000 × 1,400 × 2,300 mm

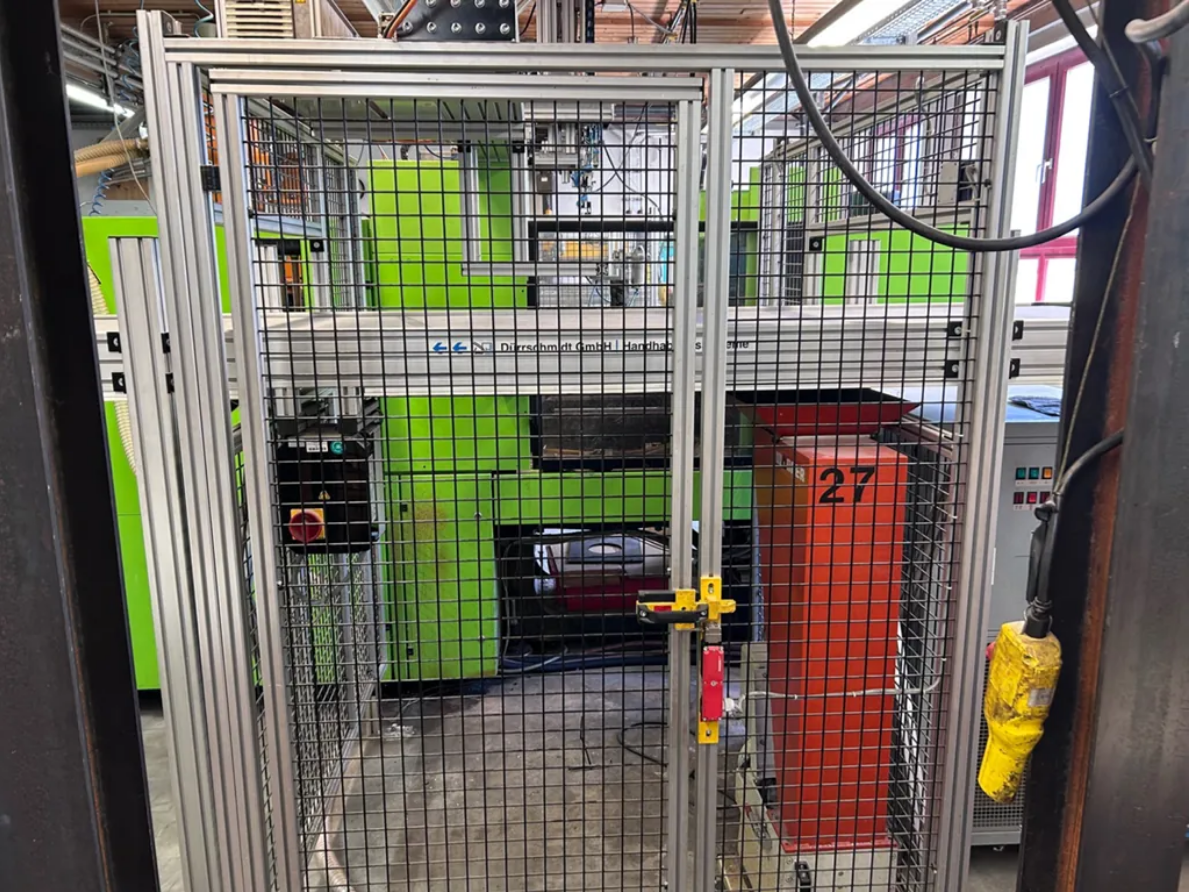

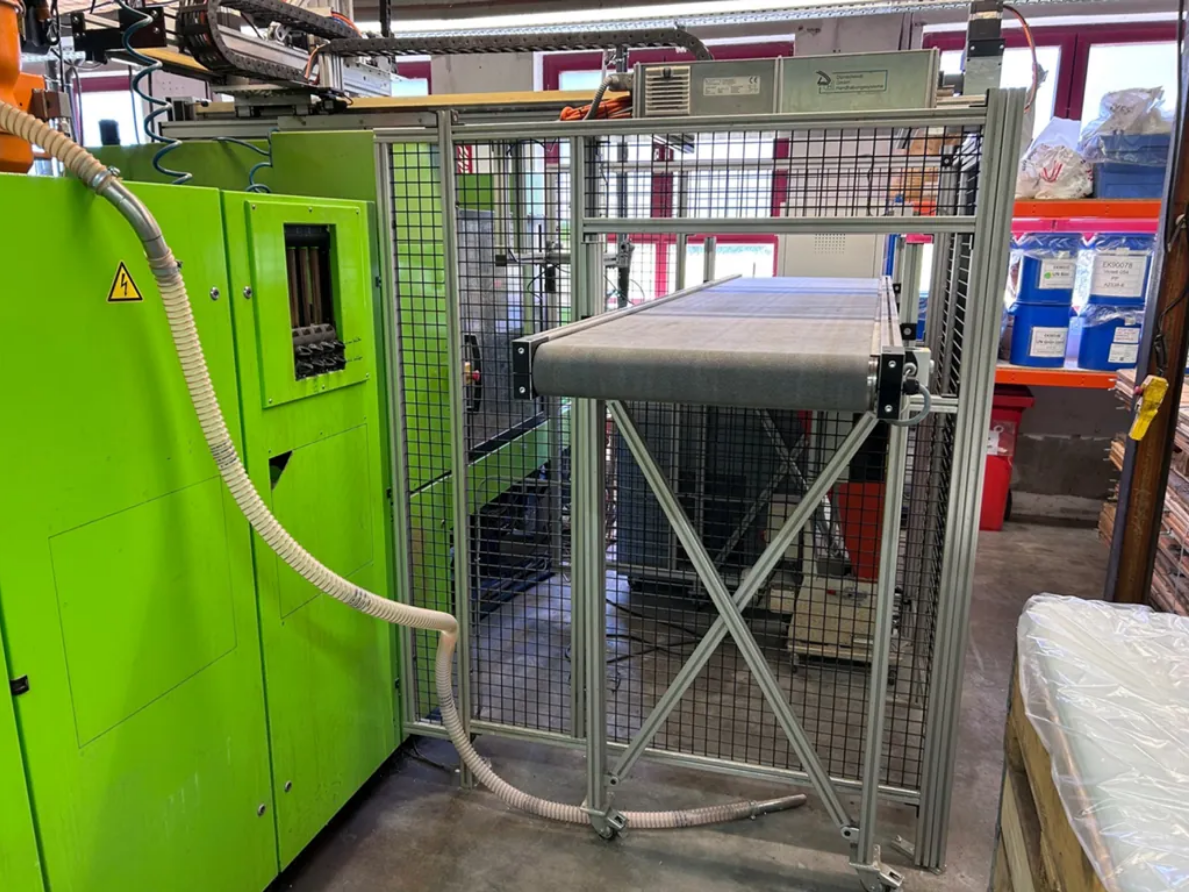

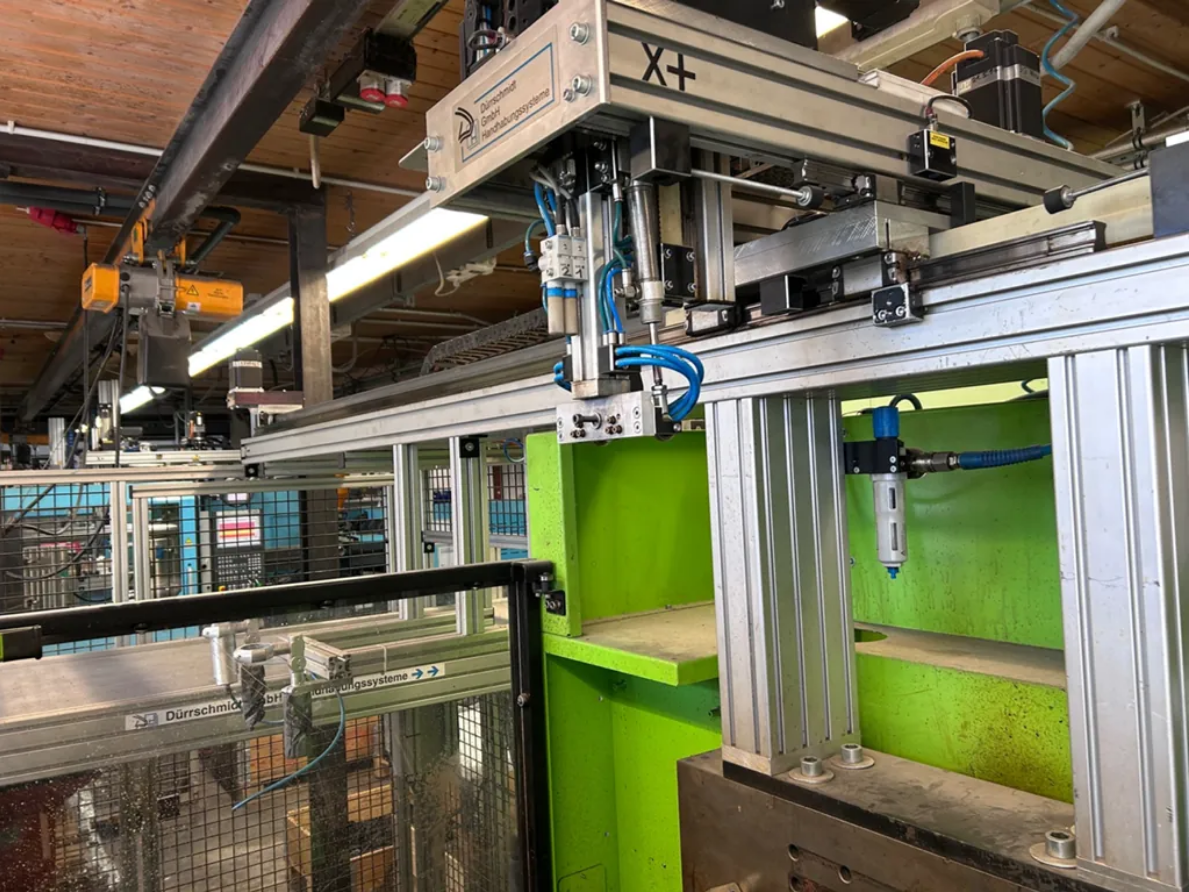

Included equipment: 3-axis handling system and conveyor belt

The ENGEL Victory 330/80 Tech is a hydraulic injection moulding machine designed
for the efficient production of technical plastic components.
The machine features ENGEL’s proven tie-bar-less clamping technology,
providing free access to the mould area, simplified mould changes and
excellent flexibility for automated production processes.

Engel Victory 33080

€22.000

Contact Us for the Product
