HomeCORMAK DCV11300

Description

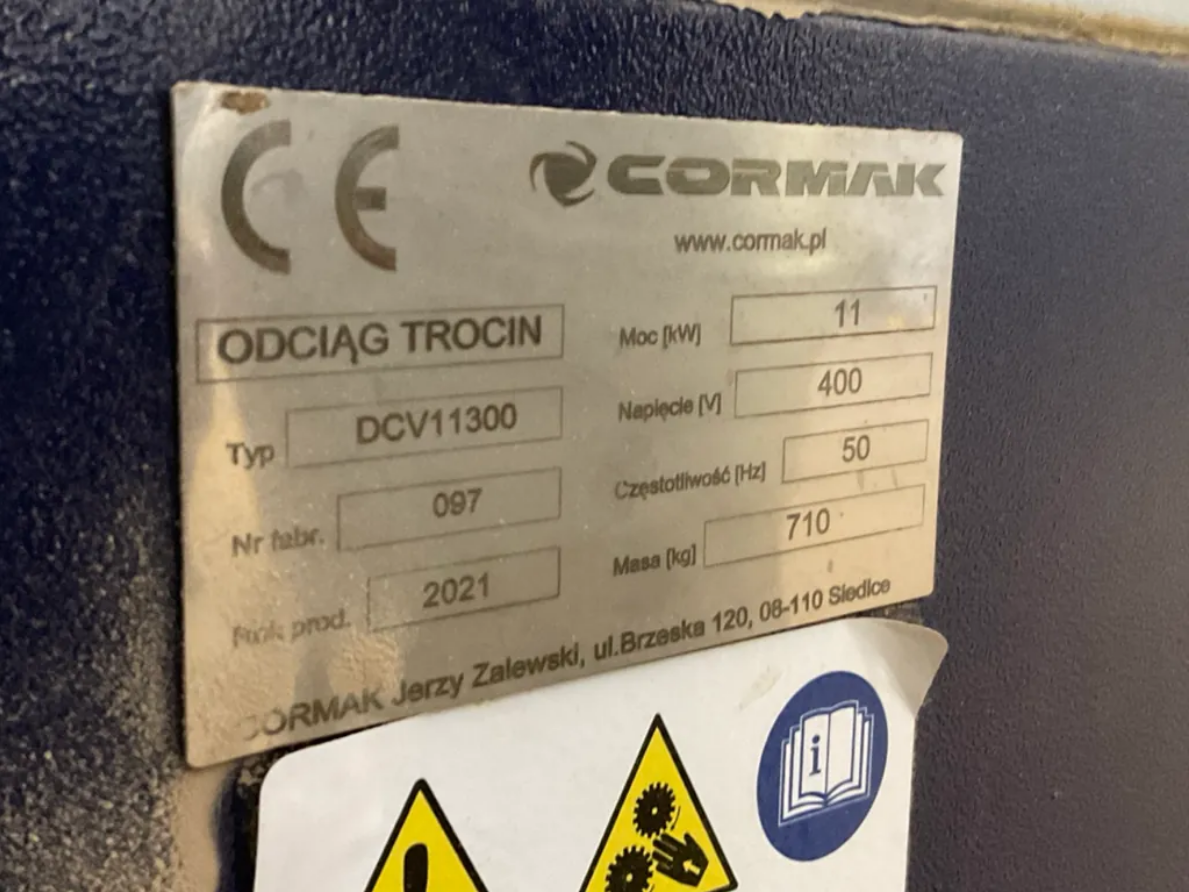

Manufacturer: CORMAK
Model: DCV11300 TC VIBER
Year of manufacture: 2021
Serial number 097

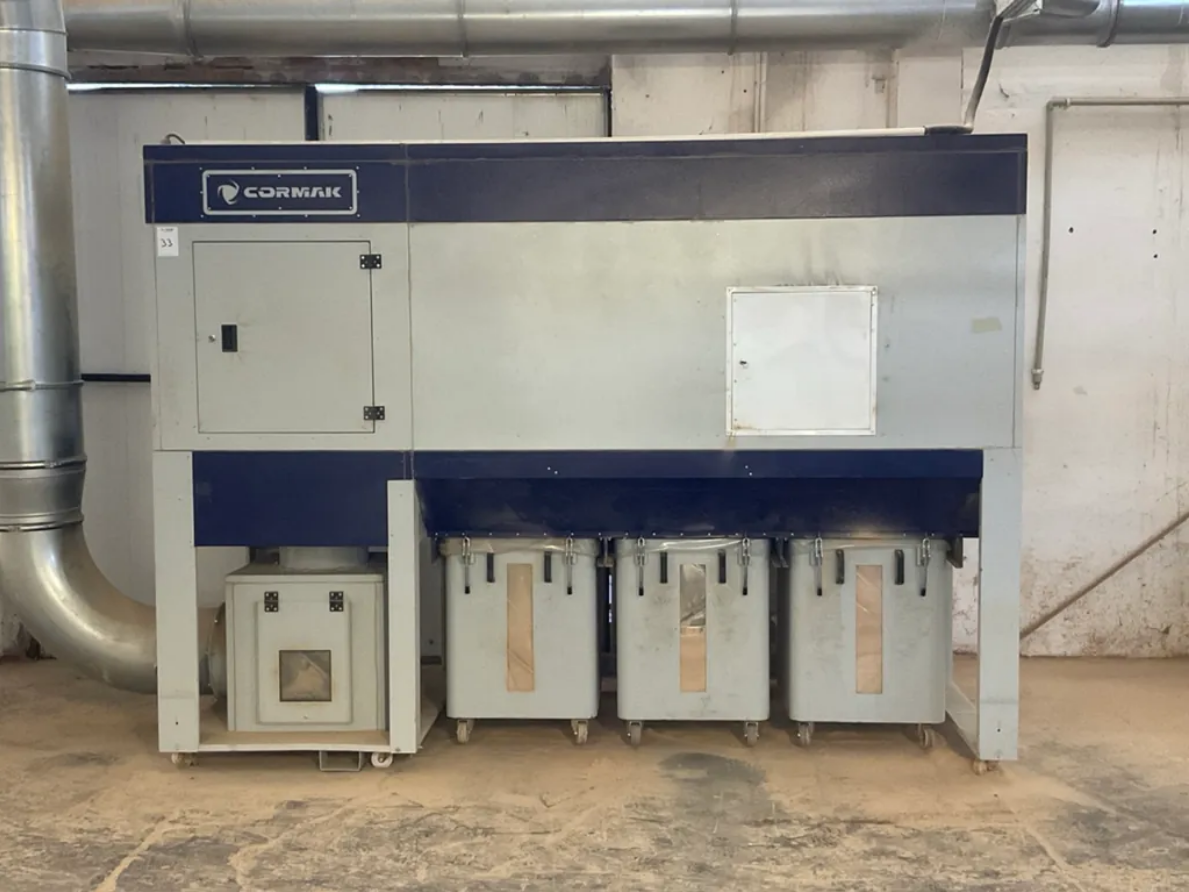

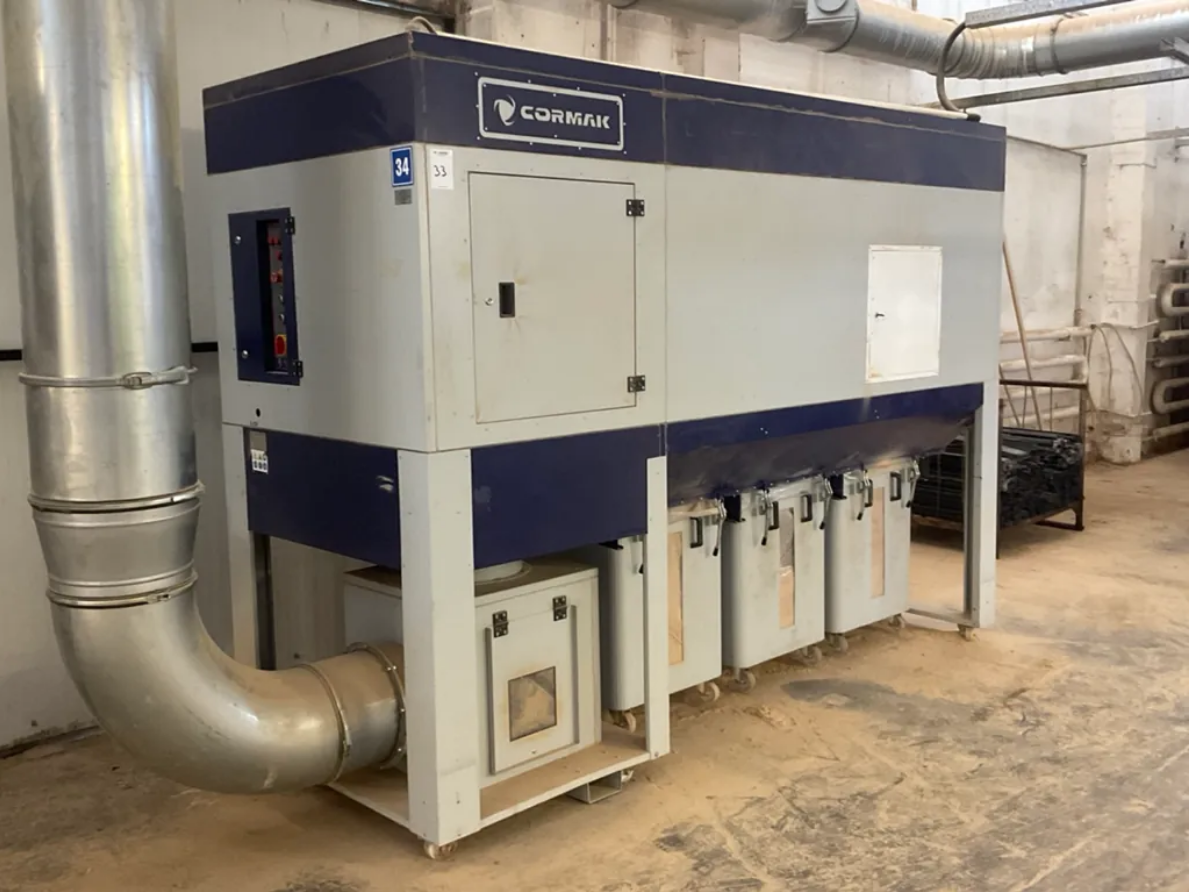

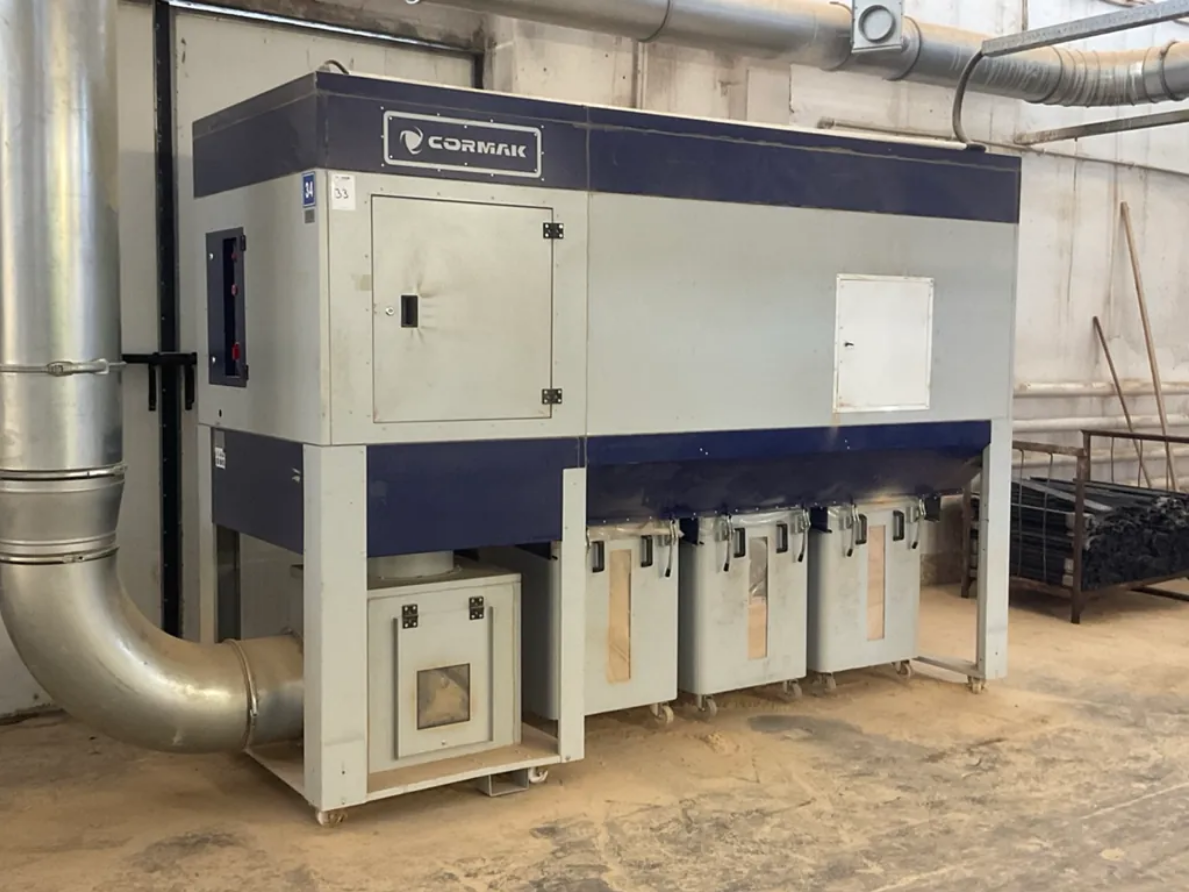

Industrial central dust and chip extraction system
Fully enclosed, sound-insulated housing (TC)
Automatic VIBER filter cleaning system
Heat recovery (REHEAT) system
Heavy-duty steel construction
Suitable for simultaneous extraction from multiple woodworking machines
Designed for continuous industrial operation

Technical Specifications:
Motor power: 11 kW
Power supply: 400 V
Airflow capacity: approximately 11,300 m³/h
Maximum vacuum pressure: approximately 3,000 Pa
Motor speed: 3,000 rpm
Noise level: approximately 80 dB
Filter system: 64 polyester cartridge filters
Filtration fineness: 5 µm
Inlet diameter: 350 mm
Outlet diameter: 500 mm
Overall dimensions: approximately 1,190 × 3,160 × 2,320 mm
Net weight: approximately 710 kg

CORMAK DCV11300

€2.400

Contact Us for the Product
